Resin General Purpose
Resins are the workhorse for the composite industry. They are available in a wide range for different uses.
All resins require RAYPLEX® Liquid Hardener (MEKP).
See below for Resins and more...
Medium 45 to 60 Min Most Popular

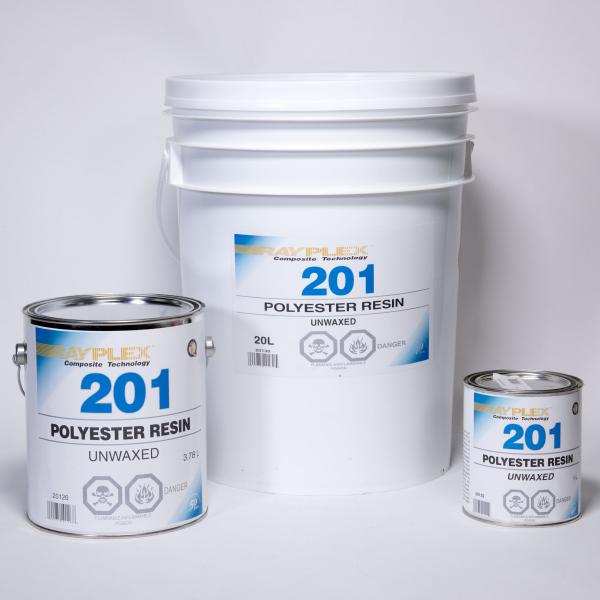

Higher Strength then 201
Higher Heat Distortion Temperature.
Canoe / Kayak Repair
Other Resins & Tools:
Check-out our starter KITS and repair KITS below, whether its a small or big project Rayplex has you covered:

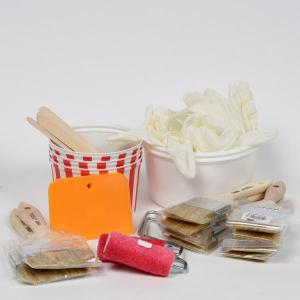

A larger repair kit for those bigger projects.
- 1 - 32oz Plastic Measuring Tub
- 1 - 32oz Plastic Mixing Tub
- 2 - 3" Chip Brushes
- 6 - 2" Chip Brushes
- 2 - 4" Chip Brushes
- 3 - 3" Roller
- 2 - 6" Spreader
- 1 - 7.5" Cage Frame
- 3 - 7.5" Roller White 10mm
- 3 - 53oz Paper Mixing Tubs
- 4 - 12" Mixing Sticks
- 3 - 83oz Paper Mixing Tubs
- Professional quality, premium production grade, general purpose polyester resin.
- Has thixotropic agent added which prevents drainage on vertical surfaces.
- Does not contain any DCP resins.
- It is air-inhibited (stays tacky) to create good adhesion without sanding between coats.
- Contains no wax for best adhesion between layers of fibreglass laminate thereby eliminating the need to sand between layers.
- Medium viscosity with a 20 to 30-minute pot-life at 1.25% MEKP catalyzation.
- Can be used for car repairs, one off molds, boat deck repairs, hockey masks. body work and general repair work.
- It is used in laminating parts and has excellent wet out properties allowing air bubbles to be easily removed.
- Use with fibreglass mat, woven roving, cloth, kevlar and carbon fiber.
Requires Catalyst # 37508 (2x125ml) SOLD SEPARATELY
|SPECIALTY CORROSION RESINS|
|Derakane 411||Used for contact molding, pultrusion, matched die molding, continuous laminating, and filament winding (medium viscosity)|
|Derakane 411C||Used for resin transfer molding, centrifugal casing, and applications requiring fast wet-out. (lower viscosity version of Derakane 411)|
|Derakane 441-400||Contains less styrene than Derakane 411 resins. Used for contact molding, pultrusion, matched die molding, continuous laminating, and filament winding (medium viscosity)|
|Derakane 470||Offers a high resistance to solvents and chemicals, good retention of strength and toughness at elevated temperatures, and excellent resistance to acidic oxidizing environments.|
|Derakane 8084||Resin of choice as a primer to prepare a substrate surface for application of a corrosion resistant lining. Can be used for RTM, hand layup, spray up, filament winding and other industrial FRP applications.|
|Derakane 510A||Designed to offer the maximum degree of fire retardance combined with enhanced chemical resistance and toughness. Fire retardance is achieved without additives, so chemical resistance is maintained and visual inspection of fabricated articles is not impaired.|
|Derakane 510N||The preferred resin for strong oxidizers, such as chlorine and chlorine dioxide. Used extensively in FRP ductwork, stacks, and stack liner applications, equipment specified to handle mixtures of air and hot gases or potentially flammable and corrosive liquids, and flooring compounds where heat and/or fire retardance is required. Offers moderate fire retardance.|
|Derakane 510C-350||Designed for ease of fabrication using hand lay-up, spray-up, filament winding, compression molding, resin transfer molding techniques and pultrusion. Offers a high degree of fire retardance while providing excellent chemical resistance and toughness.|
|Hetron 942/35||High performance epoxy vinyl ester resin with improved resistance to hydrocarbon solvents and superior thermal properties. Use with equipment requiring superior thermal properties or less than 35% styrene.|
|Hetron 980/35||High performance epoxy vinyl ester resin, formulated to provide maximum heat and corrosion resistance to strong oxidizing chemicals. Use with equipment requiring maximum corrosion resistance to bleach chemicals.|
|Hetron FR998/35||Flame retardant epoxy vinyl ester resin. Class I (ASTM E84) without antimony additives. Improved resistance to hydrocarbon solvents and oxidizing media. Superior thermal properties. Use for equipment requiring superior corrosion resistance and thermal properties to standard flame retardant epoxy vinyl ester resins. Flame retardant applications where translucency is required.|
|Hetron 970/35||Best solvent resistance of any styrenated epoxy vinyl ester resin.Improved thermal properties. Use for equipment where maximum thermal properties or solvent resistance is required.|
|Hetron 922||Corrosion resistant to both strong acids and bases. Inherent toughness provides fabrication advantages and resistance to both impact and thermal shock damage. Use where strong acids and bases are encountered. Meets FDA regulation Title 21 CFR.177.2420. Available in low and medium viscosity and promoted low viscosity versions.|
|Hetron FR992||Flame resistant version of HETRON 922. Class I (ASTM E84) with the addition of 3% antimony trioxide. Use for flame resistant equipment requiring the corrosion resistance and toughness of HETRON 922 resin.|
|Hetron 980||Superior corrosion resistance and improved thermal properties. Use where equipment requires superior thermal properties and corrosion resistance.|
|Hetron 92||Flame resistant chlorendic polyester resin providing good corrosion resistance to vapors. Use for equipment handling corrosive fumes. Available in low viscosity and without Antimony trioxide.|
|Hetron 197||Highly corrosion and heat resistant. Low flame spread Class II (ASTM E84) can be achieved with the addition of FR synergist. Use where maximum corrosion and heat resistance to wet chlorine and other oxidizing chemicals is desired. Not for caustic service.|
|Hetron 99P||Isophthalic Polyester resin that provides flame resistance and moderate corrosion resistance, Class I (ASTM E84) with the addition of 3% antimony trioxide. Use for equipment handling corrosive fumes and process equipment enclosures.|
|Aropol 7241||Isophthalic Polyester resin that provides good corrosion resistance at moderate temperatures, including hydrocarbon solvent resistance. Use for General purpose corrosion resistant equipment. FDA versions available|
|Aropol 7334||Isophthalic Polyester resin that provides resilience and moderate heat and corrosion resistance. Use for general purpose corrosion resistant equipment. FDA versions are available.|
|Hetron 700||Bisphenol A Fumarate Polyester resin with the broadest corrosion resistance to both acids and bases. Use where maximum resistance to caustic environments is required.|
|The above resins are available in 1 gallon, 5 gallon and drum sizes. Resins can be promoted and thixed at customer request. Please call for inquiries. 905-579-1433|
