Fiberglass Flat Sheet - Rayglass 'E' Red

**Shipping Available**

Please Note - there is a $15.00 Packaging Fee for 2' x 4' Fiberglass Flat Sheets.

4 x 8 Sheets Freight charges to be quoted.

No packaging fee for pickup orders

Currently available in the following sizes:

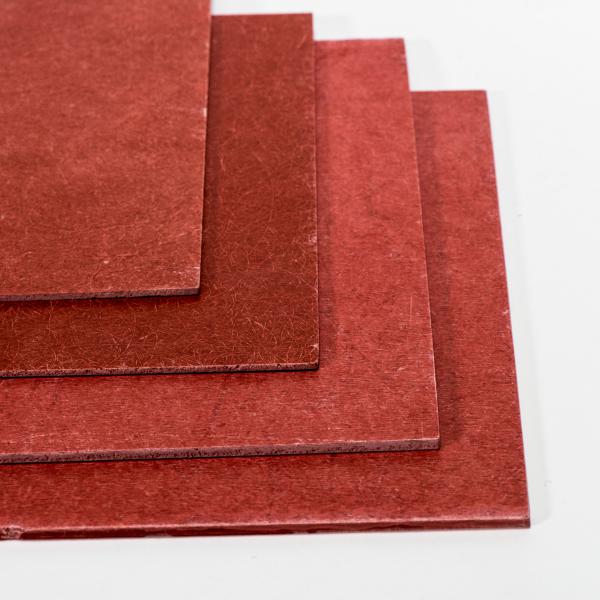

RayGlass 'E' Red
Thickness	Size	Price	ORDER
1/8 inch (.32cm)	2ft x 2ft (61cm x 61cm)	$ 49.50	84012 Qty
1/8 inch (.32cm)	2ft x 4ft (61cm x 122cm)	$ 91.20	84014 Qty
1/8 inch (.32cm)	4ft x 8ft (122cm x 244cm)	$300.30	84018 Qty

3/16 inch (.48cm)	2ft x 2ft (61cm x 61cm)	$61.88	84032 Qty
3/16 inch (.48cm)	2ft x 4ft (61cm x 122cm)	$115.90	84034 Qty
3/16 inch (.48cm)	4ft x 8ft (122cm x 244cm)	$396	84038 Qty

1/4 inch (.64cm)	2ft x 2ft (61cm x 61cm)	$78.38	84052 Qty
1/4 inch (.64cm)	2ft x 4ft (61cm x 122cm)	$142.50	84054 Qty
1/4 inch (.64cm)	4ft x 8ft (122cm x 244cm)	$495	84058 Qty

Special Order Available - Larger Sheet Sizes and Thickness

Custom Cutting to Size Available

CNC Cutting Available

Call or Email for Pricing

sales@fibreglass.com

Standard Sheet Sizes

Sheet Size in. 37 x 73

Thickness 1/32, 1/16, 1/8, 3/16, 1/4, 3/8, 1/2, 3/4, & 1.00 in

Sheet Size in. 48 x 96.5

Thickness 1/32, 1/16, 1/8, 3/16, 1/4, 3/8, 1/2, 3/4, & 1.00, 1.25, 1.5, 1.75 in

Sheet Size in. 48 x 96

Thickness in 2, 2.5 3.0, 3.5, & 4.0

Flat Sheet Strips

ELECTRICAL SHEET TECHNICAL DATA

RayGlass "E" Red, electrical grade sheets are manufactured under high heat and pressure in matched metal molds. Products are available in a wide variety of custom-molded shapes. RayGlass "E" Red, has excellent fire and track resistance and meets or exceeds NEMA Standards. Due to a combination of high strength and flame resistance, RayGlass "E" Red, products are used in the electrical industry for items such as insulation components for switchgear and other industrial electrical equipment.

UL File No. E132409

PROPERTIES: VALUES: METHOD:

FLAMMABILITY (1/8”) V-O UL94

TENSILE STRENGTH, 12-14,000 psi ASTM D790

TENSILE MODULUS, 1.7-2.0 x 106 psi ASTM D790

FLEXURAL STRENGTH, 20-25,000 psi ASTM D790

FLEXURAL MODULUS, 1.0-2.0 x 106 psi ASTM D790

COMPRESSIVE STRENGTH 30,000 psi ASTM D790

WATER ABSORPTION 0.4% ASTM D570

(24 Hours @ 230C)

IZOD IMPACT, notched, >10 ft-lb/in ASTM D256

ARC RESISTANCE 180 ASTM D495

TRACK RESISTANCE 500+ ASTM D2303

DIELECTRIC STRENGTH 437 VPM ASTM D149

(perp. oil S.T.)

FLAME RESISTANCE, VERTTICAL BURN 0 ASTM D229

FLAMMABILITY V-O UL94

NFPA 130

FLAME SPREAD INDEX <15 ASTM E162
- SMOKE EMISSIONS, DS ASTM E662 90 seconds <10
- 4 minutes <10

Relative Thermal Index (RTI)

Electrical (°C) 105 UL 746B
Mechanical (°C) 130 UL 746B

SPECIFIC GRAVITY 1.85 ASTM 792

STANDARD COLOURS:

RED, WHITE, NATURAL / ALL COLOURS

STANDARD SIZES:

-36”x72”, 37”x73” and 48”x96” sheets, 1/32” - 4”, NEMA & plus NEMA Tolerances. All sheets are HOMOGENEOUS in thickness, NO BONDING or JOINTS

CUSTOM SIZES:

-Up to 50”x 96”, 1/32” up to 4”, NEMA & plus NEMA Tolerances.

Metric thicknesses are also available.

DELIVERY:

-Stock for standard sheets, custom sizes as required.

The property values are based upon tests believed to be reliable, performed on laboratory test plaques. However, no liability is assumed resulting from its use. We suggest that the user perform tests in order to establish the material suitable for the specific application.

January 2026
